Offshore Grouting Equipment

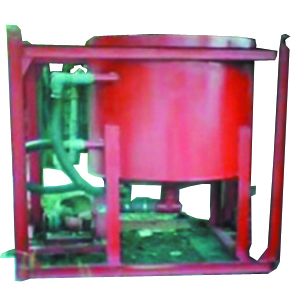

Model: GI – 003 - Colloidal Mixer and Pump
Capacity: 60 liters batching unit
Max Output – 12 – 15 M3 per hour
Dimension: 1420cm x 1160cm x 1570cm [h]
Unit on skid - Weight – 690 kgs
Model: GI - 001 - Hydraulic Power Pack Unit
Electrical Motor Driven
Capacity – 50 hp 3 phase 440 volts 50/60 hertz
Commercial hydraulic pump – 17 gallon/min
Max pressure – 3000 psi
Dimension – 1620cm x 800cm x 1090cm [h]
Unit on skid – Weight – 950 kgs

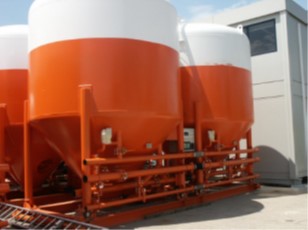

Skid Type Cement Silo
The silo can be used to store cement,coal ash, barite and other kinds of powder. Professional R&D, designing, producing and installing team will provide following one-stop service for our buyers:
•The fill,vent and discharge lines are easily accessible.
•Painting 3 layers Epoxy 100micrometer.
•The pressure relief valve provides safe unloading.
•The interior is designed to allow dry material to flow out under air pressure.
•Manholes are located at the bottom of the silo.
•The silo is equipped with air pad which requires minimum maintenance.
Theoretical capacity (CuFt) : 2000
Diameter(m) : Φ3.6
Height(m) : 7.3
Design Pressure(Bar) : 4.1-4.3
Working Pressure(Bar) : 2.8-4.3
Test Pressure(Bar) : 6.2
Material : Q235-A
Thickness(mm) : 5MM
