12TE 24 WHEEL LINEAR CABLE ENGINE
UTS 12TE Linear Cable Engines (LCEs) are generally designed to be electrically powered for a range of applications. They can be custom built to suit any application. General applications include, but are not limited to, product handling for reeling or deployment activities.
1 x Unit of UTS 12Te Linear Cable Tensioner c/w electrical HPU consisting of:
1. 12 pairs Wheel Jaw Cable Tensioner
2. PLC Control Panel
3. HPU
4. Lifting sling
5. HMI Pendant Control Console x 2 sets (1 set as spare)
6. 1 lot of spares
7. 1 lot of hand tools
8. Gross weight: 15Te
Full specifications can be provided upon request.
3TE 6 WHEELS CABLE ENGINE
UTS 3TE Linear Cable Engines (LCEs) are generally designed to be electrically powered for a range of applications. They can be custom built to suit any application.
General applications include, but are not limited to, product handling for reeling or deployment activities.
1 x Unit of UTS containerized 3Te Linear Cable Tensioner c/w electrical HPU consisting of:
1. 3 pairs Wheel Jaw Cable Tensioner
2. PLC Control Panel
3. HPU
4. Lifting sling
5. HMI Pendant Control Console x 2 sets (1 set as spare)
6. 1 lot of spares
7. 1 lot of hand tools
8. Gross weight: 7.5Te
Full specifications can be provided upon request.

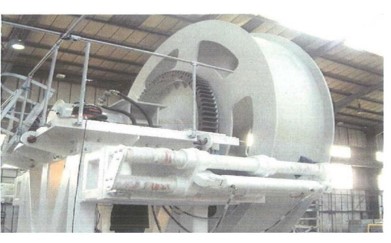

CAPSTAN 4M DRUM ENGINE
The 4m drum is a basic design machine intended for the use of laying and recovering tele- communication cable of varying types and sizes.
The drum is powered from a remote H.P.U housed in a 20 ft ISO Container. The fleeting knives on the drum are designed to be powered in a manner that will allow wraps to be put on and taken off without the need for a free end to the cable. Control of the drum is via a remote desk which houses all of the drum function controls as well as some of the DOHB controls.
SPECIFICATIONS OF DRUM ENGINE
Working Diameter: 4m
Maximum speed of Drum: 8.37 rpm
Maximum Speed of Drum @ 15Te: 1.67rpm
Maximum Pull (Low speed mode): 15Te
Minimum Brake Holding: 20Te
Main Working Pressure: 255 Bar
Brake Pressure: 27 Bar
Weight of Drum: 11.7Te
Total Weight: 27.3Te

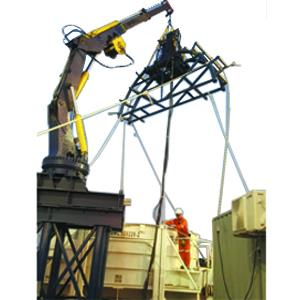

1TE QUADRANT
