Decommissioning Equipment

DIAMOND WIRE CUTTERS

Diamond Wire Saw (DWS) Subsea Cutters are designed for the underwater cutting of horizontal or vertical pipes, and offer five models that cut pipe outside diameters (ODs) ranging from 4 in to 84 in (10 cm to 213.4 cm). Running on hydraulic power, the diamond wire saw is controlled remotely by using the topside control panel (TCP) or by ROV control operable via zero leak hot stabs.

  • DWC DIAMETER 102 – 610MM
  • DWC DIAMETER 114 – 406MM
  • DWC DIAMETER 508 – 1219MM

Full specifications can be provided upon request.

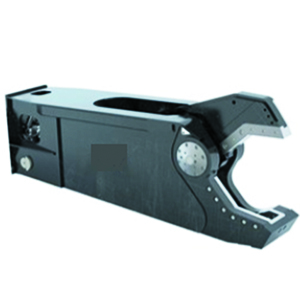

Subsea Shears

The new CI series, working in the processing of cutting flexibles and ridgid pipes of various sizes. The jaw type and wide mouth opening have been designed for grabbing and cutting all-sizes of materials.

  • CI 200 SHEARS 10IN PIPES
  • HS 200 SHEARS 10IN PIPES
  • CI 2000 SHEARS 10IN PIPES
  • CI 3200 SHEARS 13IN PIPES
  • CI 4000 SHEARS 16IN PIPES
  • CI 5000 SHEARS 20IN PIPES
  • CI 6500 SHEARS 24IN PIPES

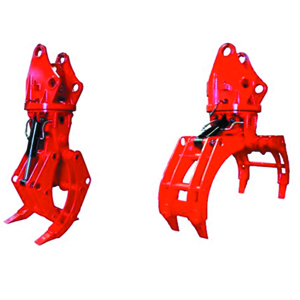

SUBSEA GRABBERS

The PM Series is designed for picking up and moving various lengths and diameters of pipes. The special 3+2 teeth jaw configuration, the rugged construction, the huge opening & the high clamping force, make it the ideal attachment for heavy duty jobs where speed up operation and precision are required. Excellent performance with high durability.

  • GRABBER 13TE

HYDRAULIC FLANGE SPREADERS

These spreaders use mechanical and hydraulic principles for separating flanges and can spread small, medium or large flange joints. Tool selection is made on the basis of the access gap between the flange faces, the flange size and the required scope of work.

Subsea Hand Pump for Flange Spreader
Subsea Hand Pump for 2-4 Ton Flame Spreader
2-4 Ton Flange Spreader

HYDRAULLIC NUT SPLITTERS

Nut splitting with hydraulic nut splitters and cutters is the safest method. It takes less time and avoids costly damage to joint components. The head design fitted with heavy duty chisels permits the splitting of nuts on a wide variety of applications. With the two blade models nuts are split from two sides in one action.

  • HYDRAULIC NUT SPLITTERS M16-22
  • HYDRAULIC NUT SPLITTERS M22-27
  • HYDRAULIC NUT SPLITTERS M27-33
  • HYDRAULIC NUT SPLITTERS M33-39

RIGGING CONTAINER

List of items in the container

  1. Bulldog Grips Size 6mm to 25mm
  2. Cargo Straps 5m Long 2-8 TON
  3. Chain Blocks 1 TON – 5TON
  4. Lever Hoists 1- 5 TON
  5. Masterlink Rings 6.5 – 22 TON
  6. Polypropylene Rope 100M 6, 8, 10, 12mm Diameter
  7. Elastic Bungee Cables 6 – 12mm Diameter
  8. Shackles Bow Type with Bolt & Nut 2 – 15 TON
  9. Sling – Flat Webbing 3m 2 – 15 Ton
  10. Sling – Wire Rope 3m 6mm 10mm 12mm 1 coil each
  11. Snatch Blocks 5 – 10 Ton
  12. Turnbuckles Various

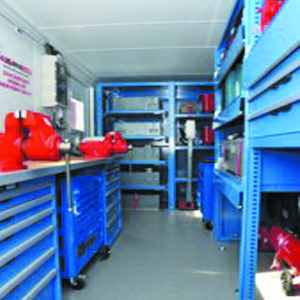

TOOLS CONTAINER

List of items in the container

1.Crimping Tool

  1. Electrical Plugs & Sockets
  2. Impact Gun & Wrench
  3. Jigsaw with Wood & Metal Blades
  4. Megger and Multi Meter
  5. Air Hose Chicago Fittings 1 – 2”
  6. Greasing Kit
  7. Enerpac Hydraulic Jacks with Handpumps
  8. Bench Vice
  9. Wrench Monkey, Pipe type 8-36”
  10. Torque Wrench 150 -1500Nm
  11. Bearing Extractor Kits
  12. Portable Welding Machine 15A
  13. Welding Consumables

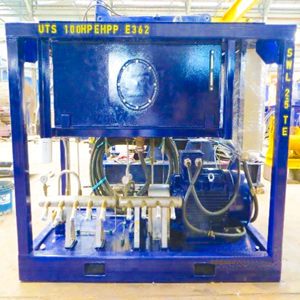

SURFACE SUPPLY HPP FOR ENERPAC TOOLS

Model :UTS EHPP 700
Maximum Operating Pressure:10,000 psi / 690 Bar
Maximum Flow at Rated Pressure: 0,55 l/min
Motor Voltage: 380-415V
Motor Hertz: 50/60Hz
Motor Phases: 3 Ph
Cylinder Compatability:Single Acting Valve Function: Advance & Retract
Valve Operation: Solenoid
Power Source: Electric
Weight: 117Lbs / 53Kg

295HP HPP FOR RUNNING SHEARS, DWC, GRABBERS & UMBILICAL WINCH

Specifications
Power Rating - 295 HP Main System
Flow Rate – Max flow rate 450L/min @ 1800rpm
Pressure – Max pressure set @ 350Bar
Oil Tank - 1350 Litres
Dimensions – L 2838 x H2200 x W1770mm
Gross Weight – 6 Tons

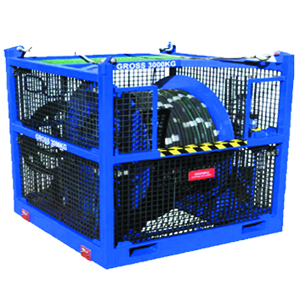

UMBILICAL WINCH WITH 150M OF 1/2:” AND ¾” HYDRAULIC HOSE. WP 3000 PSI

SPECIFICATIONS

  • Capacity – 150m Twin Hose Umbilical
  • Max Pull – 1000KG
  • Flow - 15 – 60L/MIN
  • Pressure – 200Bar
  • Connection – 6m Hose C/W Q.D Coupling
  • Weight – 1500Kg Tare, 3000Kg Gross
  • Dimension – 1770 x 1770mm
  • Drum Dimensions – Core:800mm, Flange 350mm, Width: 800mm
  • Certification – Certificates for Hoses,
  • MPI on Skid & Load test on Slings, Shackles and Frame

    • List of items in the container

    1. Bulldog Grips Size 6mm to 25mm
    2. Cargo Straps 5m Long 2-8 TON
    3. Chain Blocks 1 TON – 5TON
    4. Lever Hoists 1- 5 TON
    5. Masterlink Rings 6.5 – 22 TON
    6. Polypropylene Rope 100M 6, 8, 10, 12mm Diameter
    7. Elastic Bungee Cables 6 – 12mm Diameter
    8. Shackles Bow Type with Bolt & Nut 2 – 15 TON
    9. Sling – Flat Webbing 3m 2 – 15 Ton
    10. Sling – Wire Rope 3m 6mm 10mm 12mm 1 coil each
    11. Snatch Blocks 5 – 10 Ton
    12. Turnbuckles Various

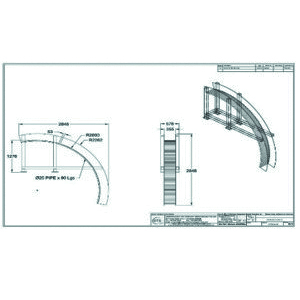

    CHUTE FOR OVERBOARD FOR SHEARS, DWC, GRABBERS & UMBILICAL WINCH. BEND RADIUS 2.8M
