Subsea NDT Equipment

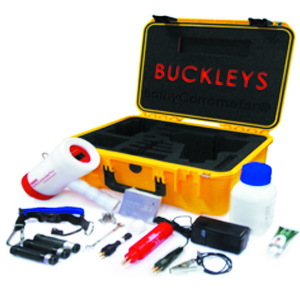

BathCorrometer

Renowned for its rugged dependable construction, the BathCorrometer is reliable and able to handle harsh environment whilst taking accurate measurements.
Complete kit comprises

  • Buckleys Bathy Corrometer Pro
  • Calchecker Pro with calibration lead
  • 3 x K-Series Reference Electrodes
  • Battery Charger
  • 6 x Hardened SS Steel Probe Tips
  • Probe tip Spanner
  • Silicone Grease
  • Zinc test block
  • Flexible lanyard w/ carabiner connection
  • Seawater text mixture
  • Fitted carrying case

    • UVG3 and UVG 5

    UVG3 and UVG 5 make use of specialized filters that do not suffer from solarization. This means that the intensity level does not deteriorate over time and users do not need to replace filters. All units are available with a certificate of compliance for ASTM E3022-15

  • Small, light and powerful for quick inspections
  • Generates an intensity of approximately 25000Kw/cm2, 10000Kw/cm2 and 3000Kw/cm2 respectively at 38cm
  • The running time is 4.5Hours

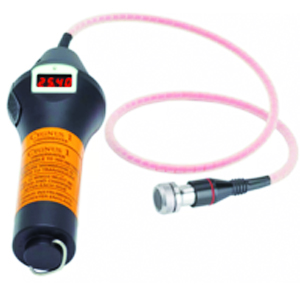

    • Cygnus Underwater

    The Cygnus Underwater is the original diver held subsea multiple echo Ultrasonic Thickness Gage. The unit is depth rated to 1,000 ft (300 meters) and it provides an accurate metal thickness measurement through coatings up to 0.787″ (20 mm) thick. The bright LED display ensures easy viewing even in poor visibility conditions.

  • Auto Probe Recognition (APR)
  • Deep-Coat mode for measuring thru coating
  • Easy Calibration using convenient buttons
  • Stable calibration linear accuracy no zero adjustment
  • Large bright LED Display for poor visibility
  • Pressure rated to 1000ft
  • Heavy duty sealed unit with double O ring
  • Echo strength indicator to aid measurement

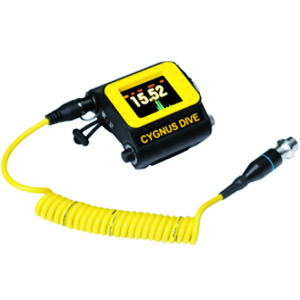

    • Cygnus Dive

    The Cygnus Dive is simple to operate , providing accurate and reliable measurements underwater. Depth rated to 300metres. Available with data logging topside and crystal probe options. MSI measurement stability indicator this is a feature exclusive to the Cygnus.

  • 300m depth rated
  • Data logging stores 5,000 measurements and A-Scans
  • AMOLED display, easy viewing from all angles for diver and camera
  • Single-Echo for use on uncoated surfaces with heavy back-wall corrosion/ pitting
  • Echo-Echo for use on painted surfaces with heavy back-wall corrosion/ pitting (through up to 0.5mm paint)
